Long Series Series, wide Taper Leaf springs
- Grey marine type paint.
- The locating pin is only on the bottom (as installed) axle is installed underneath with pin into axle location holes.

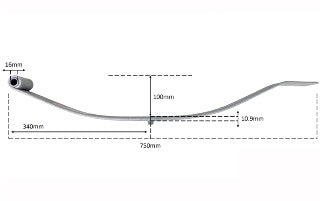

- Leaf thickness (from locator pin, excluding locator pin length): 8.7mm

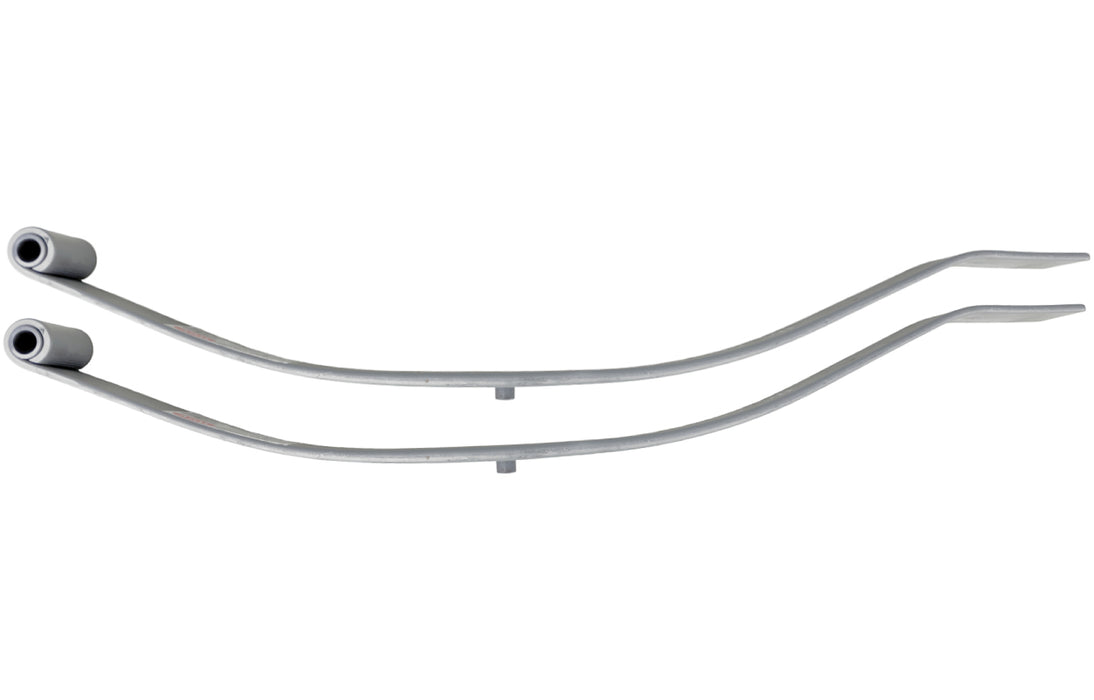

Please note that the number of leaves and finish may be different than the picture displayed.
| Part No: | Capacity per Pair: | No of leaves & sizes: | O/A length / Eye to center bolt: | Eye Dia: |
|---|---|---|---|---|
| TPBS500 | 500kg | 1 - 50mm taper | 750 - 340mm | 16mm |
| TPBS10000 | 1000kg | 1 - 50mm taper | 750 - 340mm | 16mm |
| TPBS15000 | 1500kg | 1 - 50mm taper | 750 - 340mm | 16mm |
| TPBS20000 | 2000kg | 1 - 50mm taper | 750 - 340mm | 16mm |
