Boat Trailer - T Bar
Boat Trailer - T Bar
Couldn't load pickup availability

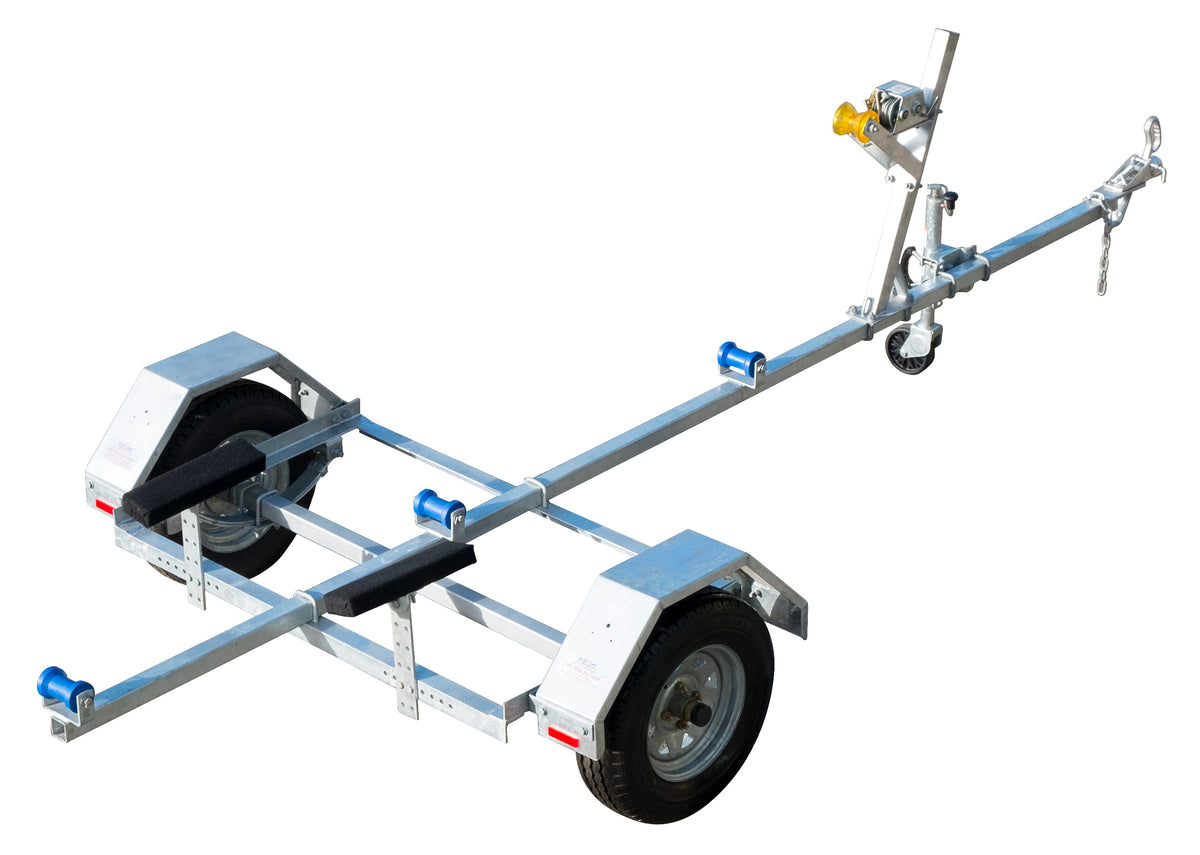

Quality and Value for New Zealand Boaties. Our TS12 T bar boat trailer is a robust and well desigend easy to use trailer. Offering unbeatable value without compromising on quality or performance. Designed to suit boats with a keel length of around 2.8m to 3.6m, it's a smart choice for anyone after a reliable, road-ready trailer at a cost-effective price.
Built tough with durable materials and expert local craftsmanship, the TS12 is engineered to handle New Zealand’s unique boating conditions. Whether you're towing through Auckland or launching at your favourite coastal spot, you can count on this trailer for smooth transport and peace of mind.
✔️ Backed with our 10 year structural warranty
✔️ Galvanised steel frame for rust resistance
✔️ Designed to suit inflatable, alloy, or fibre glass boats
✔️ We've been making trailers since 1991
| GVM | 750KG |
| Overall Length | 4.1M |
| Overall Width | |
| Width Between Guards | 1.35M |
| Drawbar Size |
70mm x 70mm x 3mm |
| Jockey Wheel | Optional |
| Coupler | 1 7/8 or 50mm NZ Standard |
| Lights | Optional |
| Tyres | 155R-12C commercial wheels & tyres |
| Bearing | NZ Standard Bearing (LM67048, LM11949) |
| Bearing Buddies | Stainless Steel Bearing buddies optional |
| Mudguards | Galvanized heavy duty mudguards |
| Winch | 2 Speeds 1:1 & 3:1 Winch with Synthetic rope |
| Frame | 60*60mm drawbar Fully welded heavy duty hot dip galvanized frame |
| Axle | Galvanized 50mm x 50mm x 5m Axle |
