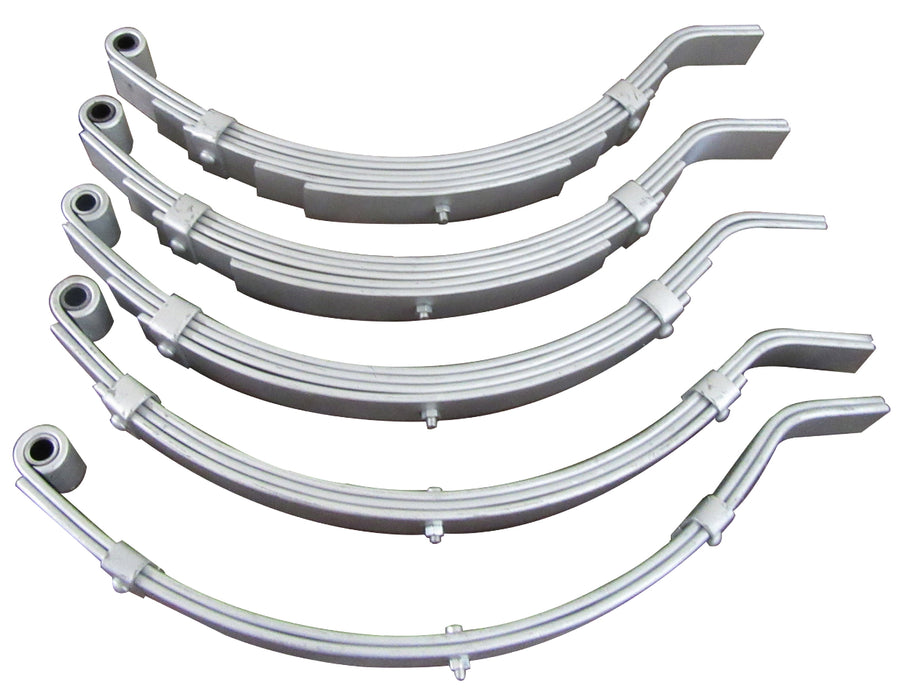

Parabolic Taper Leaf Slipper Spring - 600kg
Parabolic Taper Leaf Slipper Spring - 600kg
Regular price
$175.95 NZD
Regular price
Sale price
$175.95 NZD
Taxes included.
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
- Dacromet coated
- Ideal for boat trailers
- Leaf thickness (from locator pin, excluding locator pin length): 12.7mm. See Leaf thickness to determine capacity.
- The locating pin is only on the top(as installed) axle is installed on top with pin into axle location holes.
- Camber 155mm
| Part No: | Capacity per Pair: | No of leaves & sizes: | O/A length / Eye to center bolt: | Eye Dia: |
|---|---|---|---|---|
| T265006D | 600kg | 1 - 45mm taper | 765 - 350mm | 1/2” |
| T265010D | 1000kg | 1 - 45mm taper | 765 - 350mm | 1/2” |
| T265014D | 1400kg | 1 - 45mm taper | 765 - 370mm | 1/2” |
