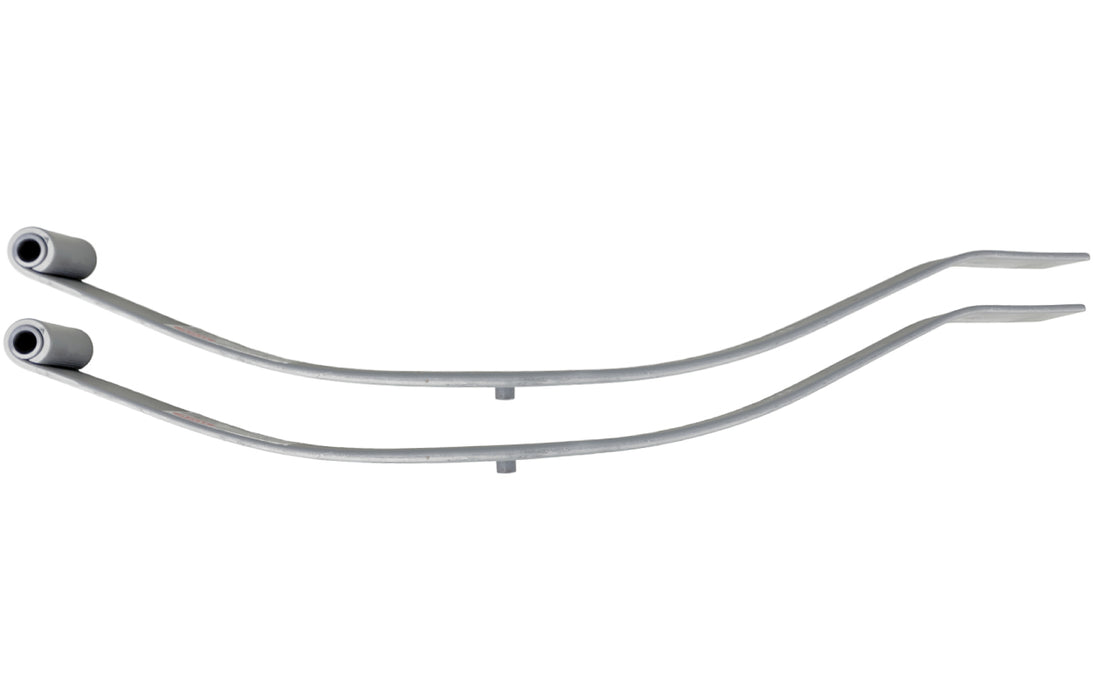

Parabolic Taper Leaf Slipper Spring - 1400kg Pair
Parabolic Taper Leaf Slipper Spring - 1400kg Pair

Parabolic Taper Leaf Slipper Spring - 1400kg Pair

by The Trailer Shop
$228.00
  • Dacromet coated
  • Ideal for boat trailers

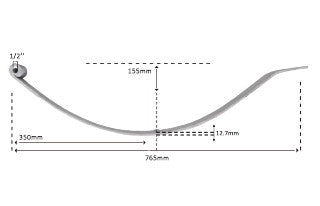

  • Leaf thickness (from locator pin, excluding locator pin length): 17.8mm. See Leaf thickness to determine capacity.
  • The locating pin is only on the top(as installed) axle is installed on top with pin into axle location holes.
  • Camber 155mm
Part No: Capacity per Pair: No of leaves & sizes: O/A length / Eye to center bolt: Eye Dia:
T265006D  600kg  1 - 45mm taper  765 - 350mm  1/2”
T265010D  1000kg  1 - 45mm taper  765 - 350mm  1/2”
T265014D  1400kg  1 - 45mm taper  765 - 370mm  1/2”
